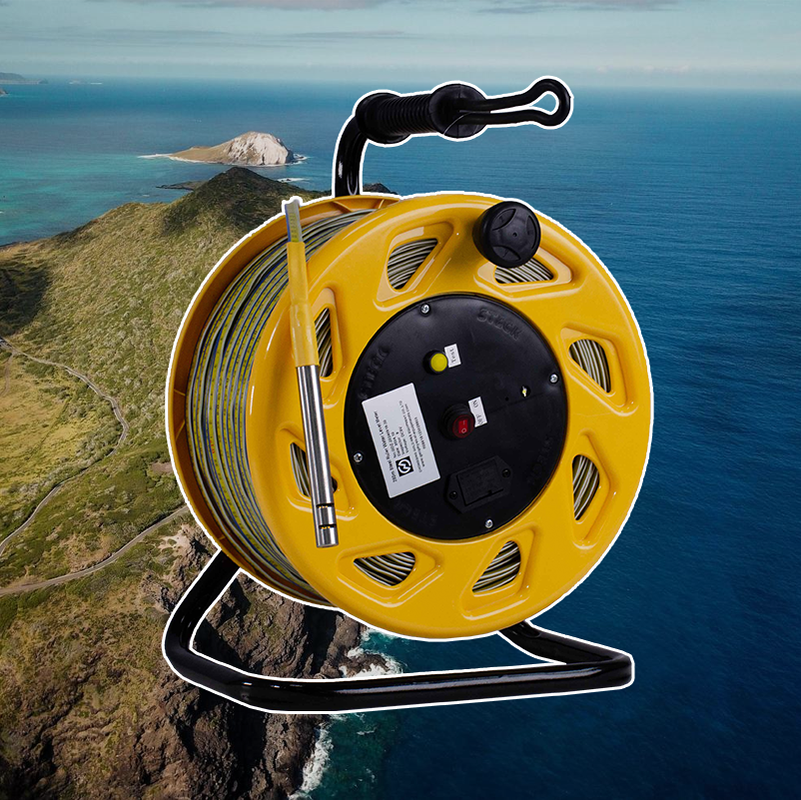

Intrinsically Safe Level Probe Remote Water Level Telemetry

Subsurface tile drainage is essential for crop production on poorly drained soils, removing excess water from the root zone to allow timely planting and harvesting. However, conventional drainage systems remove water indiscriminately, often discharging valuable nutrients (especially nitrogen) and pesticides into downstream waterways. The AgriDrain Water Table Manager transforms traditional tile drainage into a controlled, intelligent system by installing water level control structures at drainage outlets and continuous monitoring sensors throughout the drained field. This allows farmers to raise the water table when drainage is not needed, reducing nutrient export while maintaining crop yields, and providing documentation for water quality trading programs that generate additional revenue.

• Automated Water Level Control Structures: The system retrofits existing tile outlets with motorized slide gates or weir boards that can be raised or lowered remotely. By adjusting the outlet elevation, the system controls the water table depth across the entire drained field. Higher outlet settings retain more water in the soil profile, reducing drainage volume and associated nutrient loss.
• Field Wide Water Table Monitoring Network: A grid of pressure based water level loggers installed in shallow observation wells provides real time water table depth across the field. The system creates contour maps of water table elevation, showing which areas drain quickly and which remain wet. This data guides precision drainage management and identifies opportunities for targeted drainage improvements.
• Rainfall and Soil Moisture Adaptive Control: The platform ingests hyperlocal rainfall forecasts and soil moisture sensor data from the root zone. Before a predicted heavy rain, it automatically lowers outlet settings to create storage volume in the soil profile, reducing surface runoff. After the rain passes, it raises settings to conserve water for crop use. This dynamic management maximizes both drainage benefit and water conservation.
• Nutrient Export Calculation and Water Quality Credit Generation: By measuring drainage flow volume with a flume or weir and nitrate concentration with an inline ion selective electrode or UV nitrate sensor, the system calculates total nitrogen mass exported from the field. When farmers reduce drainage volume through controlled management, the avoided nitrogen export can be certified as water quality credits and sold to regulated point sources such as wastewater treatment plants.

1. Field Characterization and Baseline Export Determination: During the first year, the system operates in monitoring only mode to establish baseline drainage volume and nitrate export under conventional free drainage.
2. Adaptive Water Table Management: In subsequent years, the system dynamically controls outlet settings based on crop stage, rainfall forecast, and soil moisture. During the growing season, it maintains the water table at optimal depth for the specific crop (typically 60 to 90 centimeters for corn). During fallow periods, it raises the water table to reduce drainage.
3. Credit Verification and Reporting: For farmers participating in water quality trading, the platform generates verifiable reports documenting drainage volume reduction and avoided nitrate export, which are submitted to regulatory authorities for credit issuance.
