Centralized Multi - electrode Resistivity Survey System for Engineering Geology Projects

Centralized Multi - electrode Resistivity Survey System for Engineering Geology Projects

Place of Origin chongqing,China
Brand Name GOLD
Certification CE, ISO
Model Number WGMD-9
Product Details
Product Name:
Super Electric Multi-electrode Survey System
Brand Name:
GOLD
Place Of Origin:
Chongqing, China
Host Machine:
WDA-1
Cable:
5m Space Cable, 10m Space Cable(optional)
Maximum Power:
7200W
Maximum Supply Voltage:
±1200V
Working Temperature:
-10℃~+50℃, 95%RH
Highlight:

multi-electrode resistivity survey system

,

engineering geology resistivity instrument

,

geophysical exploration electrode system

Product Description

Centralized Multi - electrode Resistivity Survey System for Engineering Geology Projects

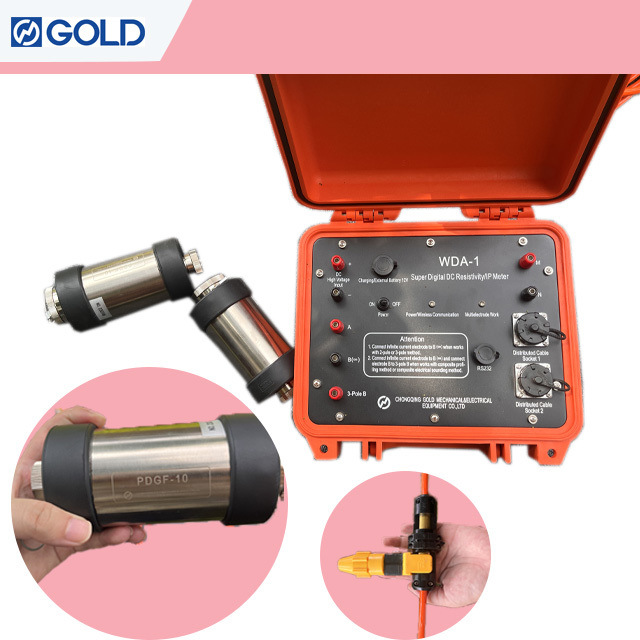

Centered around WDA - 1, this system uses centralized cable and electrodes. It specializes in multi - electrode resistivity surveys, offering a straightforward solution for obtaining subsurface resistivity information in engineering geology projects.

Centralized Multi - electrode Resistivity Survey System for Engineering Geology Projects 0Centralized Multi - electrode Resistivity Survey System for Engineering Geology Projects 1Centralized Multi - electrode Resistivity Survey System for Engineering Geology Projects 2

Application Specifications Table

Investigation Type Performance Metric
Mineral Exploration 500m penetration depth
Groundwater Investigation 300m typical resolution
Engineering Site Characterization 0.5m near-surface detail
Environmental Contamination 5% concentration detection
Geotechnical Hazard Assessment 1cm displacement sensitivity
Archaeological Prospection 0.25m feature resolution

Unique capabilities include deep penetration for mineral exploration, high-resolution near-surface imaging for engineering projects, and sensitive monitoring for environmental applications. The system's versatile output options range from raw measurement data to fully processed geological models suitable for technical reports and regulatory submissions.

Centralized Multi - electrode Resistivity Survey System for Engineering Geology Projects 3

Centralized Multi - electrode Resistivity Survey System for Engineering Geology Projects 4

Centralized Multi - electrode Resistivity Survey System for Engineering Geology Projects 5

Centralized Multi - electrode Resistivity Survey System for Engineering Geology Projects 6
