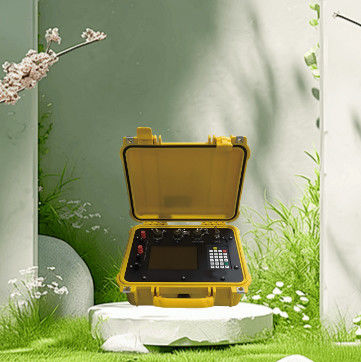

GD-5 Magnetotelluric System: Painting Earth’s Hidden Masterpieces

Where Science Meets Van Gogh
Every subsurface survey is a blank canvas—oil reservoirs as bold brushstrokes, aquifers as watercolor washes, fault lines as charcoal sketches. The GD-5 Magnetotelluric System isn’t just a tool; it’s your geological paintbrush, blending data pigments into subsurface murals that captivate CEOs and climatologists alike.

Palette of Possibilities

1. The Frequency Brushstroke

   • HMT (100kHz–10Hz): Fine liners for urban graffiti—map subway tunnels or forgotten crypts.

   • AMT (10kHz–0.1Hz): Watercolors for oil seep landscapes or groundwater auroras.

   • MT/BMT (1kHz–10000s): Oil paints for mantle abstract art or geothermal firestorms.

   • Mixed Media: Layer CSAMT textures with TEM splatters for Pollock-worthy surveys.

2. The Timeless Easel
   When GNSS signals fade like old frescoes, the GD-5’s thermostatic clock preserves your masterpiece—<1ms drift over 10 hours. It’s the Leonardo da Vinci of data integrity, ensuring no detail cracks with time.

3. The Live Art Studio
   With ARM-A8+FPGA creativity, the GD-5 renders resistivity portraits in real time. Imagine phase spectrums blooming like lilies or anomaly maps morphing like a timelapse—geological art in motion.

4. The Unbreakable Frame
   At 3.5kg (lighter than an easel) and IP67-sealed, the GD-5 survives monsoon monochromes, sandstorm etchings, and -40°C ice sculptures. Its military-grade ports? They’ve endured paint thinner and a baboon’s curiosity in Botswana.

5. The Gallery Curator
   Exhibits in Phoenix V8, MTU, or SEG-EDI. The MTPRO software? Your digital art dealer, framing data as SEG-Y classics or NFT-ready holograms.

Artist’s Toolkit

Software: The Digital Atelier
MTPRO Suite – The AI Apprentice:

• Noise Eraser: Scrub power line scribbles from your canvas.

• Cloud Gallery: Exhibit live surveys in virtual Louvre wings or corporate metaverse lobbies.

• NFT Export: Mint your subsurface art as digital collectibles—geology meets blockchain.

MT-Pioneer – The Holographic Muse:

• AI Art Critic: Suggest survey tweaks like a snooty gallery owner (but useful).

• VR Vernissage: Host opening nights in 3D holographic galleries—serve virtual champagne.

Why Be the Picasso of Prospecting?

• Speed: Sketch subsurface still lifes 60% faster—more time for espresso breaks.

• Profit: Sell your geological NFTs to tech bros and hedge funds.

• Legacy: Hang your GD-5 datasets in virtual museums—immortality, pixel-style.
