Rotary Short Circuit Wire Dynamic Tension Well Cable

Rotary Short Circuit Wire Dynamic Tension Well Cable

Place of Origin Chongqing, China
Brand Name Gold
Model Number GD
Product Details
Product Name:
Wireline Logging Cable
Copper Construction:
19×0.26 Mm
Insulation:
0.35 Mm
Protection:
0.32 Mm
Cable Diameter:
5.60 Mm±0.10 Mm
Cable Weight In Air:
145 Kg/km
Temp Rating:
232 ℃
Cable Breaking Strength:
25 KN
Highlight:

rotary short circuit wire

,

dynamic tension well cable

,

geophysical well logging cable

Product Description
Rotary Short Circuit Wire Dynamic Tension Well Cable
Mechanical Superiority
This Heavy-Duty Wireline Solution delivers exceptional performance with a 15 percent breaking strength advantage over conventional logging cables. The reinforced construction withstands increased stresses in deviated sections and horizontal laterals. When integrated with a rotary short circuit, torque management becomes seamless, enabling smoother pumping and retrieval operations.
Mechanical Specifications
  • Weight in air: Ranging from 145 to 704 kg per kilometer
  • Bend diameters: From 320 to 670 mm for complex well paths
  • Stretch coefficients: As low as 0.7 meters per kilometer per 5 kN

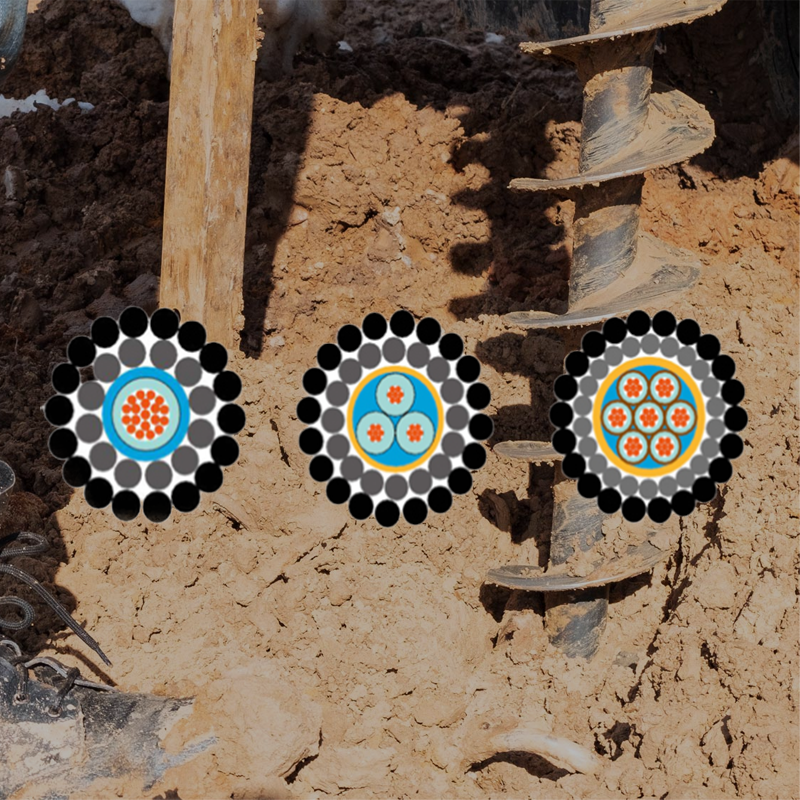

Product Models & Specifications
Model Diameter (mm) Weight (kg/km) Breaking Tension (kN) Bend Diameter (mm)
WGSF46-HS-5.60 5.60 145 30 320
WGSF46-HS-8.00 8.00 281 55 450
W3BFP-HS-9.58 9.58 352 74 460
W7F46PP-HS-13.20 13.20 704 125 590
Product Gallery
Rotary Short Circuit Wire Dynamic Tension Well Cable 0 Rotary Short Circuit Wire Dynamic Tension Well Cable 1 Rotary Short Circuit Wire Dynamic Tension Well Cable 2 Rotary Short Circuit Wire Dynamic Tension Well Cable 3
