30hp Mini Horizontal Directional Drilling Machine 1.6T Rig Drilling Machine
  • 30hp Mini Horizontal Directional Drilling Machine 1.6T Rig Drilling Machine
  • 30hp Mini Horizontal Directional Drilling Machine 1.6T Rig Drilling Machine
  • 30hp Mini Horizontal Directional Drilling Machine 1.6T Rig Drilling Machine
  • 30hp Mini Horizontal Directional Drilling Machine 1.6T Rig Drilling Machine

30hp Mini Horizontal Directional Drilling Machine 1.6T Rig Drilling Machine

Place of Origin Chongqing, China
Brand Name Gold
Certification ISO9001 CCC CE
Model Number HX-08T
Product Details
Applicable Industries:
Energy & Mining
Dimension(L*W*H):
2*6.30*0.4(m)
Warranty:
1 Year
Machinery Test Report:
Provided
Drilling Diameter:
50mm, 75mm, 60mm
Engine Rated Power:
30hp
Weight:
1300 KG
Video Outgoing-inspection:
Provided
High Light:

30hp Mini Horizontal Directional Drilling Machine

,

Mini Horizontal Directional Drilling Machine

,

1.6T Rig Drilling Machine

Product Description

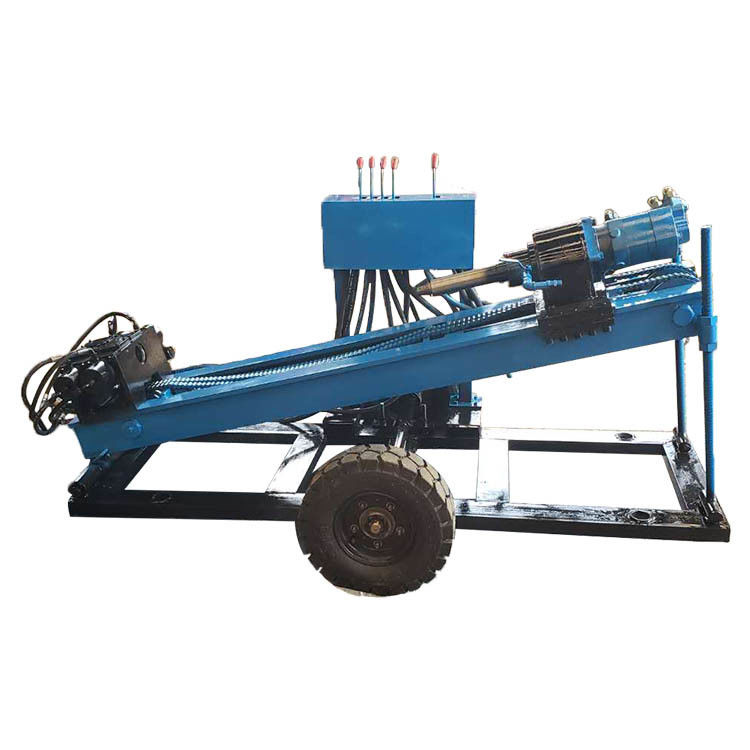

Mini Drilling Rig Horizontal Directional Drilling 1.6T Drilling Machine



Rated power of engine 30 hp (single cylinder diesel engine) Slewing torque 2200 Nm



drilling tool



Φ 30 45mm * 1m drill pipes; Transfer case 8T; One guide bit;

Reamer Φ 160mm Φ 260mm

Slewing speed 120 R/min
Push and pull speed 10m/min Operating weight 1.6T
Overall dimension of drilling rig(L * W * H) 2 * 6.30 * 0.4 (m) Push and pull force 80 KN


Introduction:

Horizontal directional drilling rigs of various specifications are composed of drilling rig system, power system, steering system, mud system, drilling tools and auxiliary tools. Their structures and functions are introduced as follows:
3.1 Drilling rig system: It is the main body of the drilling operation and back-hauling operation of the crossing equipment. It is composed of the main unit of the drilling rig and the turntable. The turntable is installed at the front end of the main unit of the drilling rig, connected to the drill pipe, and the requirements of different working conditions can be met by changing the turntable direction, output speed and torque.
3.2 Power system: composed of a hydraulic power source and a generator. The power source provides high-pressure hydraulic oil for the drilling rig system as the power of the drilling rig, and the generator provides power for the supporting electrical equipment and lighting on the construction site.

30hp Mini Horizontal Directional Drilling Machine 1.6T Rig Drilling Machine 0


3.3 Steering control system: The steering system is a directional tool that monitors and controls the specific position and other parameters of the drill bit underground to guide the drill bit to drill correctly. Because of the control of this system, the drill bit can drill according to the design curve. There are two types of steering systems, portable wireless and wired, that are often used.
3.4 Mud system: The mud system consists of a mud mixing tank, a mud pump and mud pipelines, which provide the drilling rig system with mud suitable for drilling conditions.
3.5 Drilling Tools and Auxiliary Tools: These are all kinds of tools used by drilling rigs for drilling and reaming holes. Drilling tools mainly include drill pipes, drill bits, mud motors, reamers, cutters and other tools suitable for various geological conditions. Auxiliary implements include snap rings, swivel unions and pull heads in various pipe diameters.

Rig configuration:

·Changzhou engine with strong power and reliable performance is adopted, with strong economy.

·The swing push-pull motor has stable performance.

·Push-pull oil cylinder pushes the chain, with high efficiency and long service life.

·The mast luffing mechanism ensures that the angle of drilling into the soil can be adjusted in a wide range of 13 ° - 24 ° to adapt to the length and different formation construction conditions.

·The drill is compact and can be constructed in a narrow space.
